Description

The H-beam Laser Cutting Machine is an advanced industrial solution designed to revolutionize the fabrication of H-shaped steel beams, widely used in construction,
shipbuilding, bridge engineering, and heavy machinery. Combining high-power laser technology with intelligent automation, this machine delivers unparalleled precision,
speed, and flexibility in processing structural steel components.

Items	Name	Model	Brand	Original
1	Host machine	HBP410-20000W	Honeybee	China
2	Laser source	MFMC-20000W	Raycus/MAX	China
3	Laser head(automatic focus）	3D For pipe cutting	Cypcut	China
4	Water Chiller	20000W	Hanli	China
5	CNC controller	FSCUT5000(Special system for pipe cutting)	Cypcut	China
6	THC	FSCUT	Cypcut	China
7	Cut Software	TUBEPRO	Cypcut	China
8	Servo motor	lifting750W(CF-7G-13AFS61) horizontal1.5KW（CF-7G-13AFS61） portrait4.4KW（CF-7G-30AFS61） Servo lift 3KW（CF-7G-13AFS61）	YASKAWA	Japan
9	Gear and Rack	MSVGH-CP-L-DIN6	SMG	Japan
10	Linear guide/slider	SH35/SHM30BPA	SMG	Japan
11	Precision reducer (several)	Horizontal: VRT-090C-7-F Longitudinal :VRT-110C-7-F	Shiimpo	Japan
12	proportional valve	ITV2050-333N	SMC	Japan
13	electronic componets	/	Schneider	France
14	Cylinder/solenoid valve	10*20/4V110-06	SMC	Japan
15	410 pneumatic chuck (2 groups of 3 cards)	410mm	Honeybee Custom	China
16	Automatic auxiliary loading and unloading device	/	Honeybee Custom	China
17	Servo lifting device	8 Group	Honeybee Custom	China
18	Electrical cabinet	/	Honeybee Custom	China
19	Power Supply Stabilizer	380V 200KVA	Huawen	China
20	Dust removal fan	7.5KW	Guoyou	China

H beam laser controller TubePRO: The TubePro system series are developed by Shanghai Friendsess Technology, including TubePro5000A, Tube5000B and TubePro5000C which are specially used for laser cutting of metal steel tubes, H beam U beam, angle steel ect, featuring high precision and efficiency. The portfolio combines structural steel cutting controller FSCUT9200, BLT4X2P series intelligent cutting head, AB Rotary Mechanism, BCW Contour Laser Profiler, and other related hardware and software, supported power up to 40 kW.

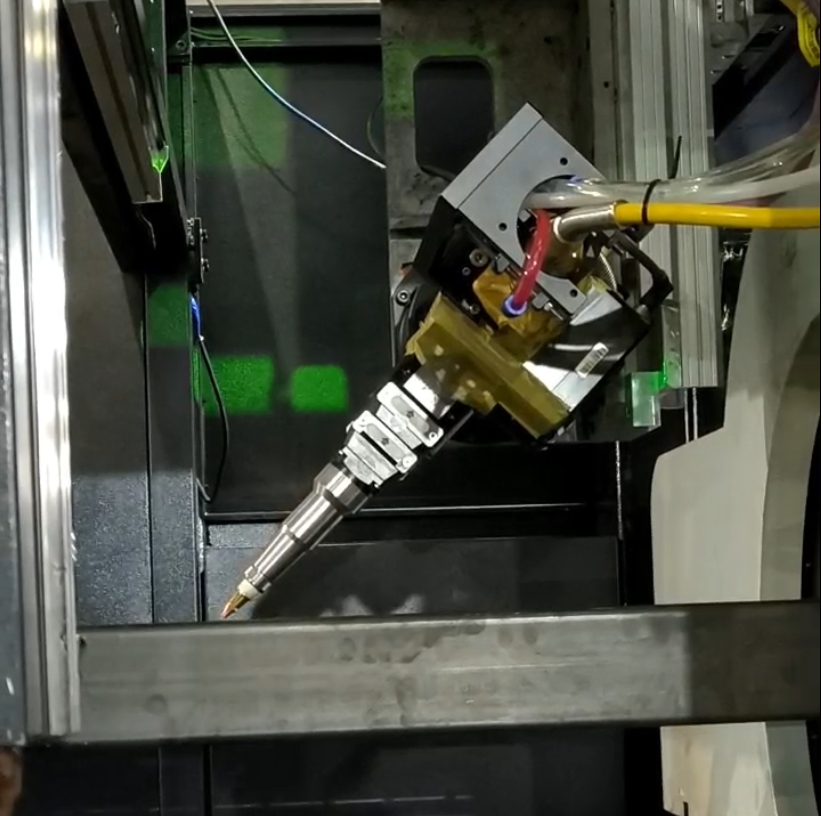

	Cut head: Quick calibrate rotation axis parameter.High precision, short processing time, and easy maintenance. BCW laser profiler real-time measures and make compensation for error between drawing and material position. Cutting and bevel cutting of flanges and webs, scallop and deburring, bolt holes processing and marking structural steel cutting demands. Combined with BLT laser head, stable and precise.

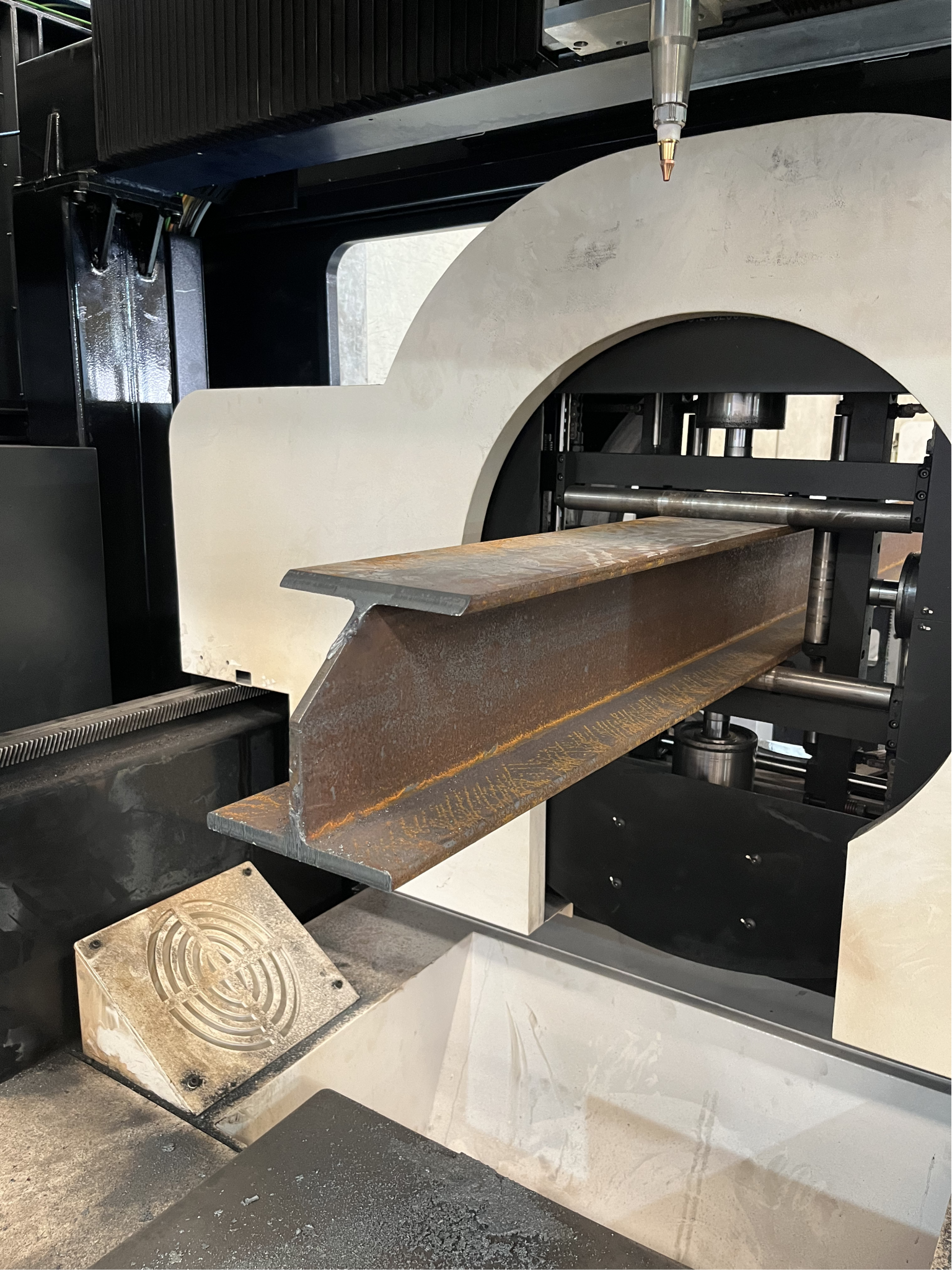

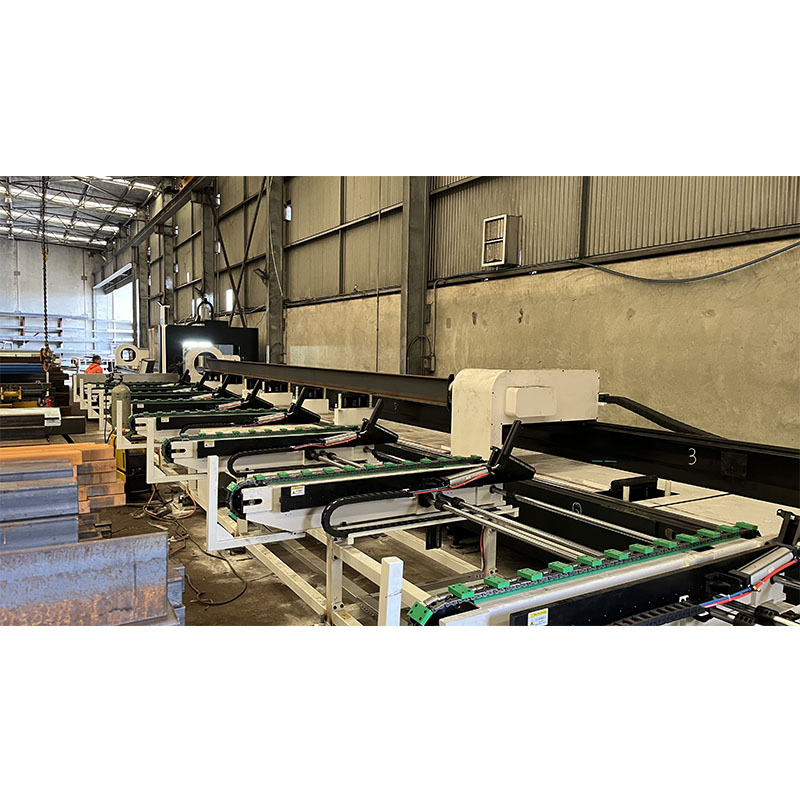

Three Chuck ,ZERO tail without material waste: Detecting sensor for front and rear chuck opening & clamping, preventing possible collision Function of front chuck ventilation, for dust prevention from entry into chucks Front chuck avoidance cutting

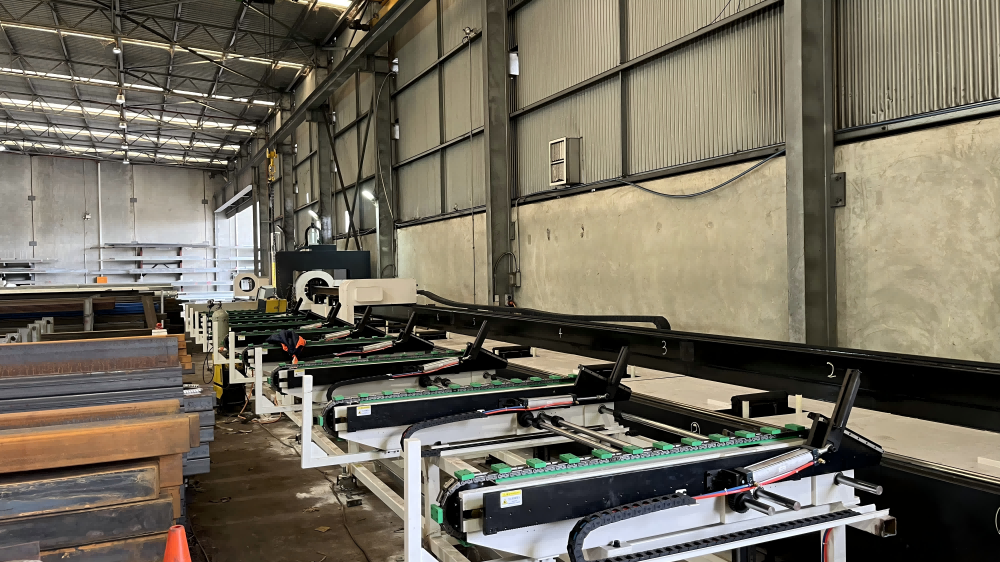

	Automatic Loading table: To save loading time, and can put some profiles in one time and then profiles loading automatic.

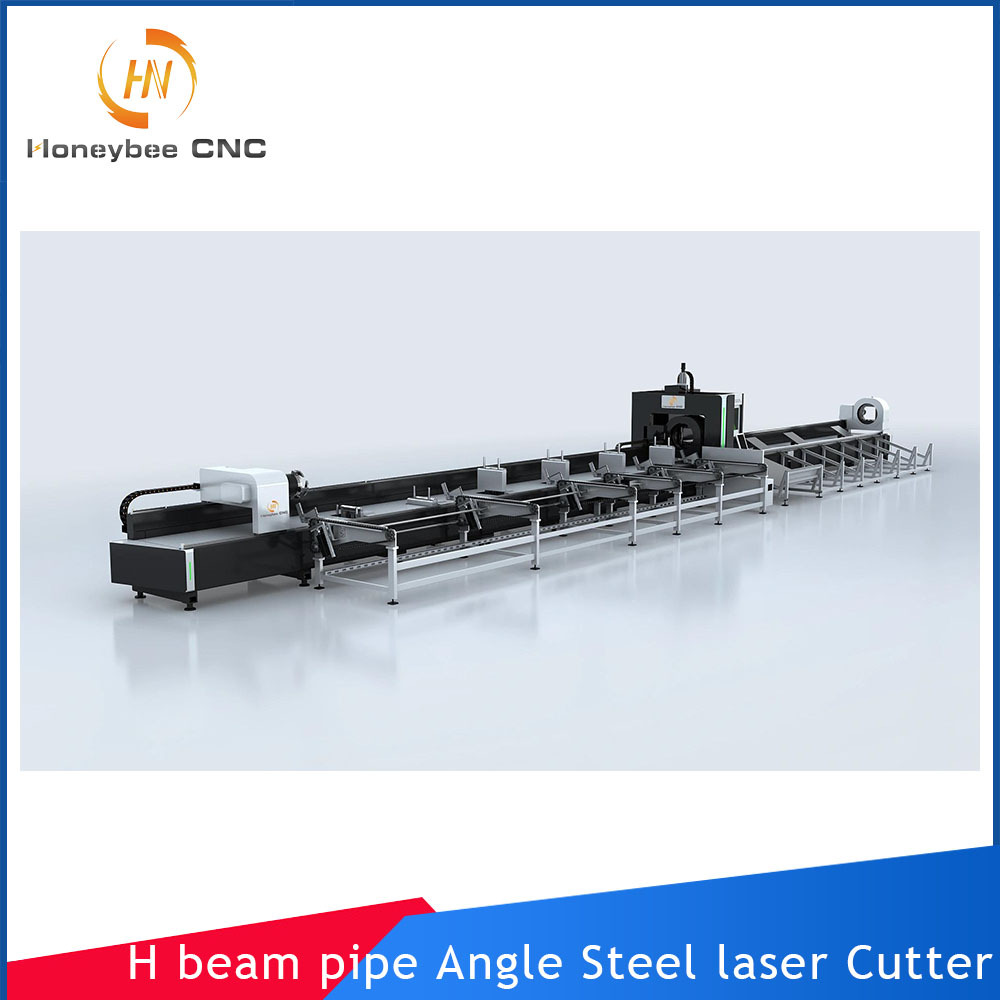

H-Beam Laser Cutting Machine: Precision and Efficiency for Structural Steel Fabrication

The H-beam Laser Cutting Machine is an advanced industrial solution designed to revolutionize the fabrication of H-shaped steel beams,
widely used in construction, shipbuilding, bridge engineering, and heavy machinery. Combining high-power laser technology with intelligent automation,
this machine delivers unparalleled precision, speed, and flexibility in processing structural steel components.

Key Features

High-Power Laser Source
- Equipped with fiber lasers (ranging from 6kW to 20kW), it effortlessly cuts through H-beams of varying thicknesses (up to 50mm) with minimal thermal distortion.
- Supports materials including carbon steel, alloy steel, stainless steel, and aluminum.
3D Dynamic Cutting Capability
- Specialized robotic arm or gantry systems enable multi-axis cutting on H-beams’ flanges, webs, and complex contours, ensuring accuracy for angled holes, slots, and weld preparations.
Automated Material Handling
- Integrated roller conveyors or robotic loaders streamline the feeding and positioning of heavy H-beams (up to 12 meters in length), reducing manual labor and downtime.
Intelligent CNC System
- User-friendly interface compatible with CAD/CAM software for seamless file import and nesting optimization, minimizing material waste.
- Real-time monitoring of cutting parameters (e.g., power, gas pressure) ensures consistent quality.
Durability & Safety
- Robust frame construction with dust-proof and explosion-resistant designs for harsh industrial environments.
- Safety features include laser shielding, emergency stops, and gas leakage detection.

Applications

Construction: Precise cutting for steel frameworks, columns, and trusses.
Shipbuilding: Efficient fabrication of hull structures and bulkheads.
Energy Infrastructure: Customized components for wind turbines, oil rigs, and power plants.
Heavy Machinery: High-tolerance parts for cranes, mining equipment, and agricultural machinery.

Advantages Over Traditional Methods

Speed: 3–5x faster than plasma or flame cutting.
Precision: ±0.1mm accuracy for tight fit-up in welding assemblies.
Cost Efficiency: Reduced post-processing (e.g., grinding) and material savings via optimized nesting.

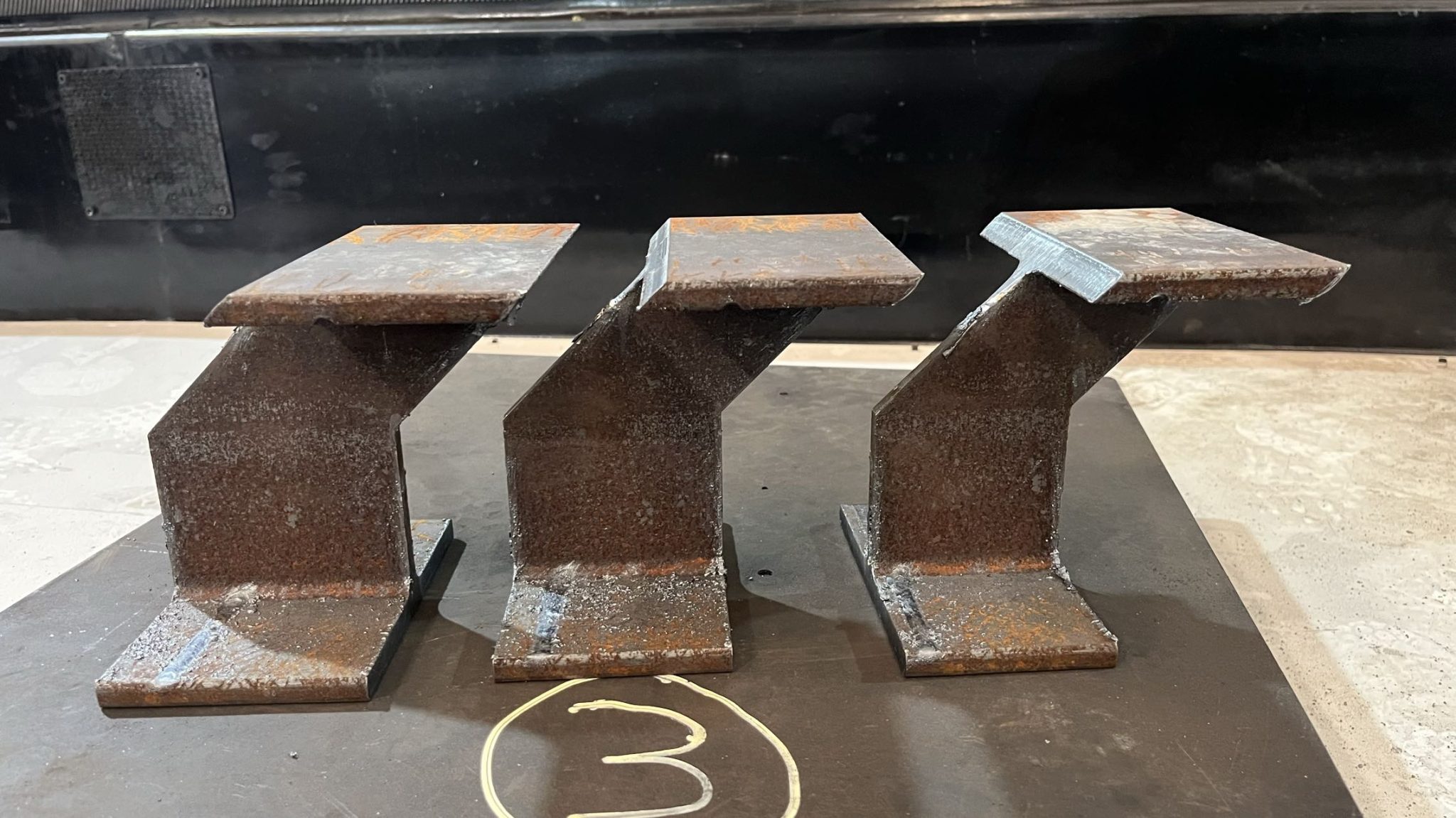

Versatility: Handles complex geometries (e.g., fishmouth cuts, bevel edges) in a single setup.

Technical Specifications

Parameter	Details
Laser Type	Fiber Laser (IPG, Raycus, etc.)
Cutting Range	H-beam Sizes: 100×100–900×300mm
Max. Beam Length	12 meters (customizable)
Positioning Accuracy	±0.05mm/m
Control System	Siemens, Fanuc, or Hypertherm
Power Requirement	380V/50Hz, 3-phase

Why Choose Our H-beam Laser Cutting Machine?

Industry 4.0 Ready: IoT-enabled for remote diagnostics and predictive maintenance.
Eco-Friendly: Energy-efficient operation with reduced gas consumption.
Custom Solutions: Tailored configurations for specific production needs.

Ideal for manufacturers seeking to enhance productivity and expand capabilities in structural steel processing, this machine represents the future of industrial fabrication. Contact us today for a demo or technical consultation!
