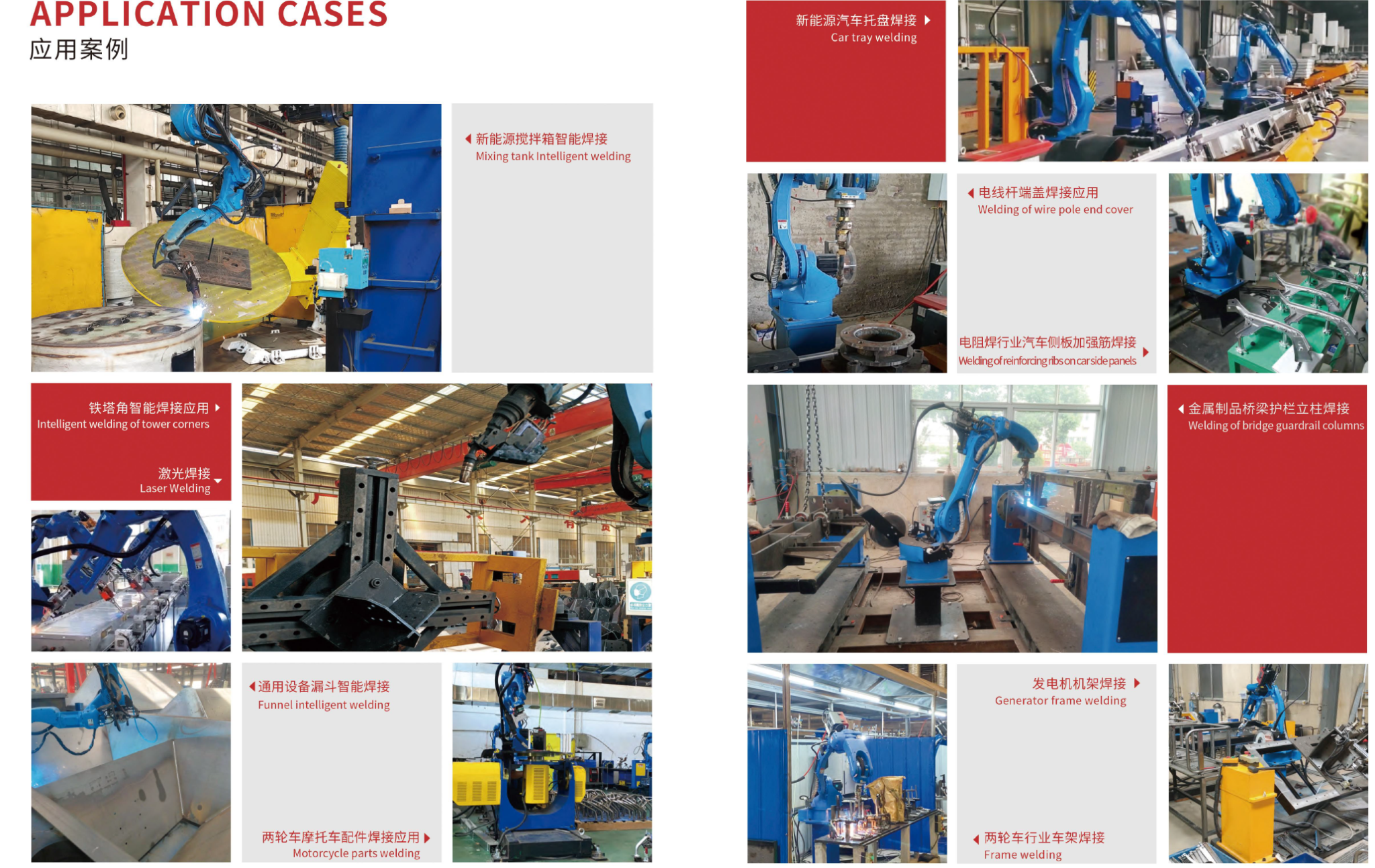

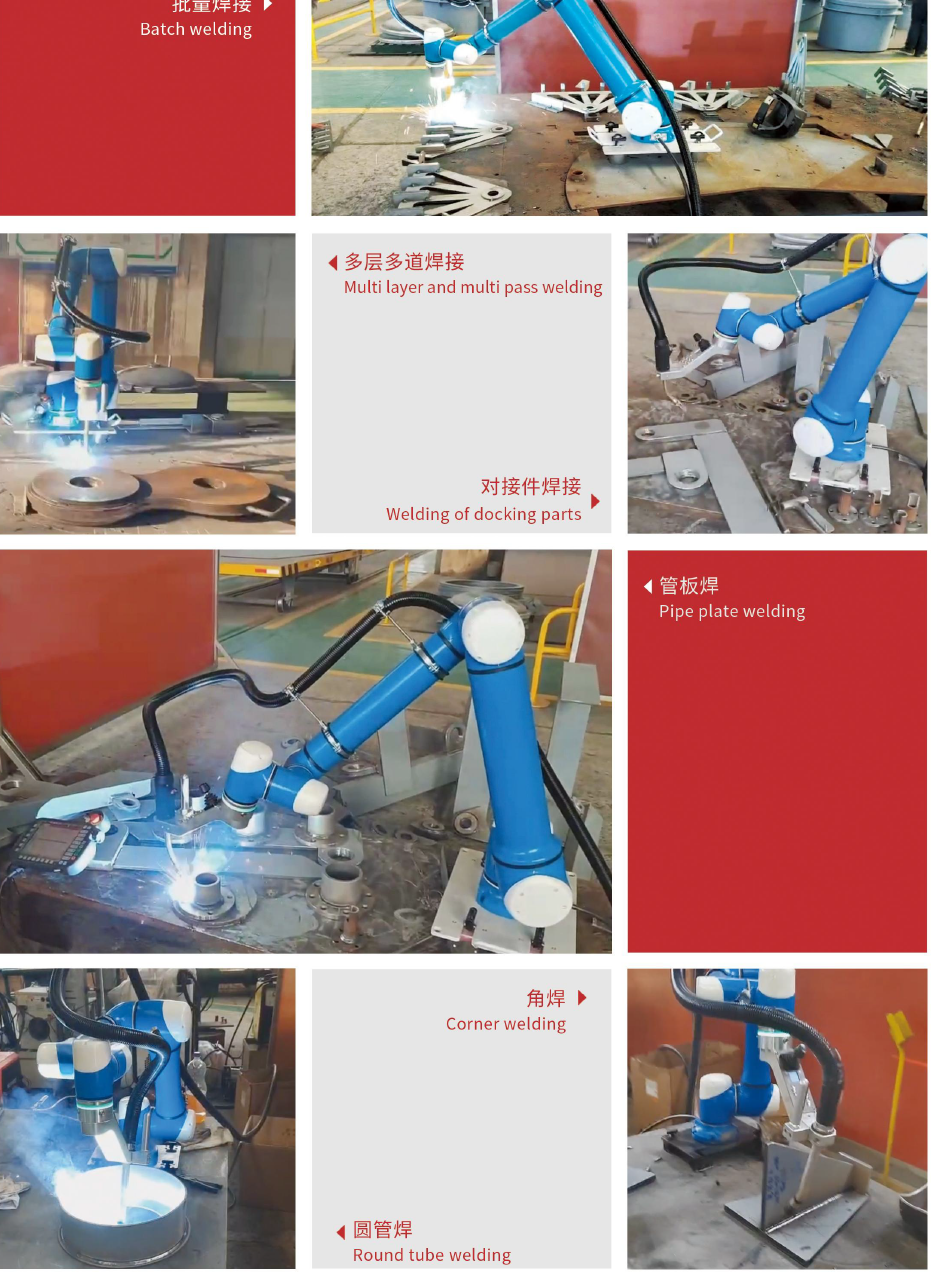

● Wide range of application: suitable for welding of small batches and many varieties.
●Easy to operate: technicians can manually drag and drop programming, no programming is required, and they can get started quickly.
●Removable platform: It is easy to change the scene and meet the welding needs of various environments.
●High versatility: The software control system of the workstation is powerful and can be programmed freely according to the process requirements.
●Safe and reliable: Complies with multiple safety standards, making human-machine collaboration safer.
●Advantages compared with industrial robots: short deployment time, higher safety, strong operability and small footprint.
|
Robot Model |
XC0907 |
XC1406 |
XC1415 |
XC1820 |
|
Weight |
21Kg |
22Kg |
36Kg |
68Kg |
|
Maximum Payload |
7Kg |
6Kg |
15Kg |
20Kg |
|
Maximum Working Radius |
1077mm |
1460.7mm |
1464.3mm |
2027mm |
|
Repositioning Accuracy |
±0.02mm |
±0.05mm |
±0.03mm |
±0.05mm |
|
Maximum End Speed |
3m/s |
3m/s |
3m/s |
4m/s |
|
Degrees of Freedom |
6 rotational DOFs |
6 rotational DOFs |
6 rotational DOFs |
6 rotational DOFs |
|
Installation Method |
Arbitrary angle installation |
Arbitrary angle installation |
Arbitrary angle installation |
Arbitrary angle install |
|
Rated Power |
260W |
260W |
550W |
1500W |
|
Material |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
Operating Temperature |
-5℃~55℃ |
-5℃~55℃ |
-5℃~55℃ |
-5℃~55℃ |
|
Operating Humidity |
5%~90% RH (no condensation) |
5%~90% RH (no condensation) |
5%~90% RH (no condensation) |
5%~90% RH (no con |
|
IP Rating |
IP54 |
IP54 |
IP54 |
IP54 |
|
Noise Level |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
