The laser is generated by the laser source and transmitted by the flexible optical fiber path. After being focused by the focusing lens in the welding head, the laser acts on the weld seam between the processed materials. With the help of the protective gas (to prevent the material from being oxidized), the material is liquefied to form a specific molten pool, so as to achieve the purpose of welding.
Hand-held operation welding, flexible and convenient, can be any shape, any angle welding;
The equipment is small and easy to move. It is not only convenient for long-distance welding of large workpieces, but also for outdoor welding;
Simple operation, easy to use, no need for professional welders;
The welding speed is fast and the efficiency is more than 5 times that of arc welding;
Beautiful weld, small deformation, saving the cost of subsequent grinding and shaping
Laser Power
1000W
1500W
2000W
3000W

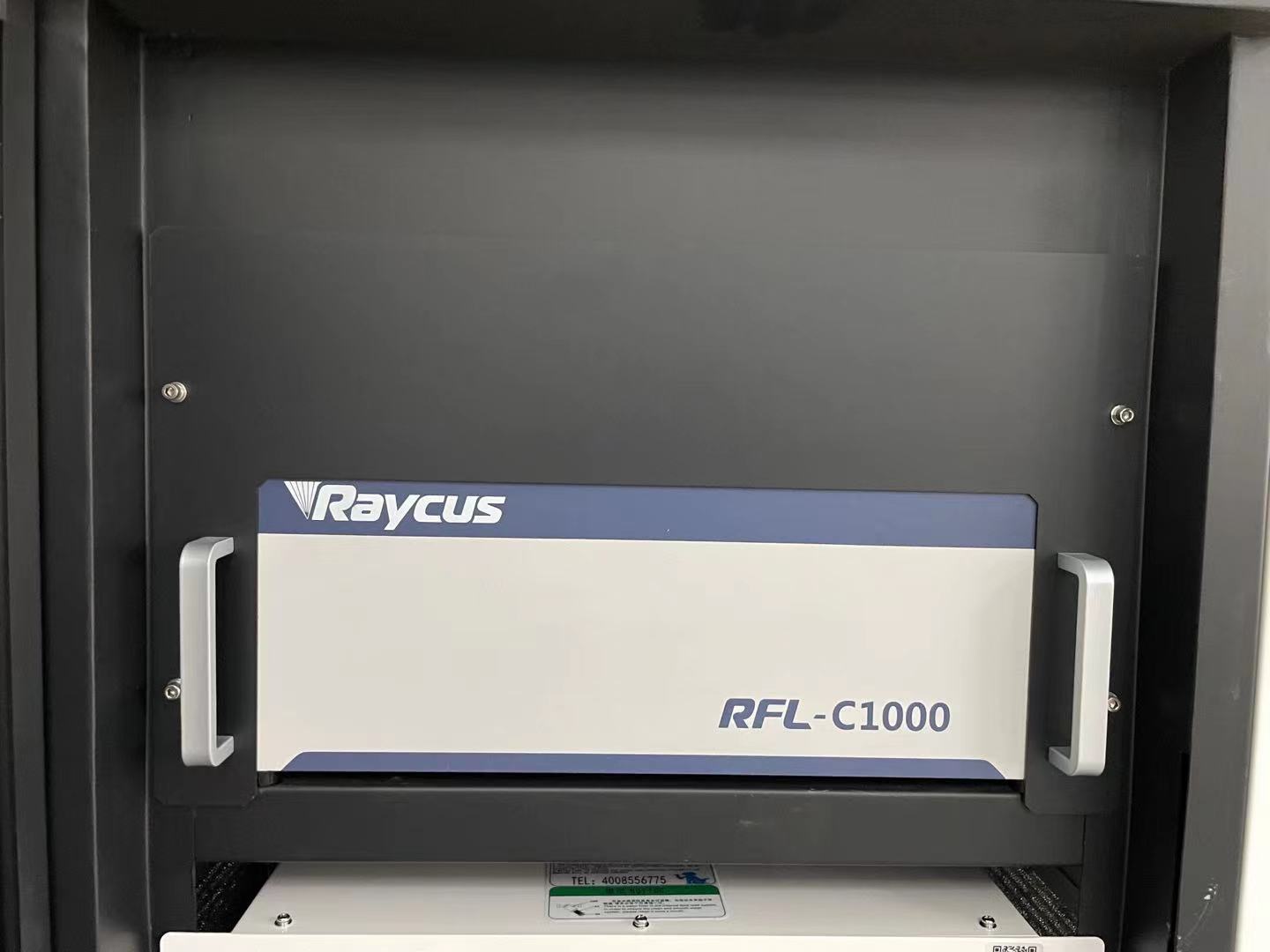

Laser Type
Continuous Fiber Laser
Rated Output Power
1000W/1500W/2000W/3000W
Optical Output Interface
QBH
Indication System
Red Light
Fiber Length
10m (Can be customized)
Welding Torch Cable Length
10m (Can be customized)

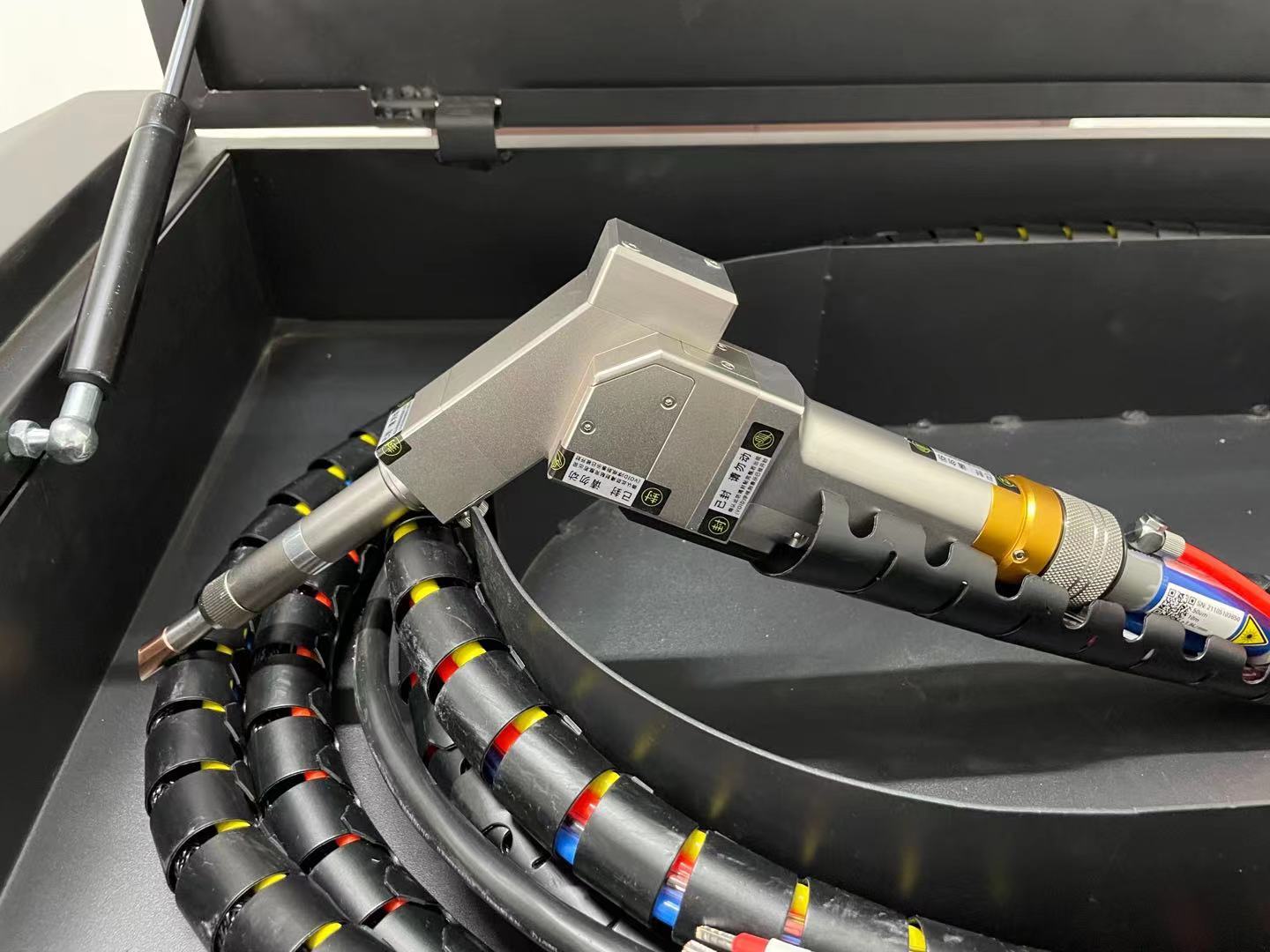

Welding Torch Type
Single Swing Welding（Dual is option)
Welding Torch Weight
0.8kg
Diameter of Welding Wire
0.8、1.0、1.2、1.6(Dual wire option)
Production Form
1000/1500/2000w
3000w
Integrated
Separated
Dimension
Host machine 1200*600*1300mm
Weight
280KG
Work Voltage
1Ph, 220V
3Ph,380V
Complete Set Power
6Kw
7Kw
9.5Kw
18Kw

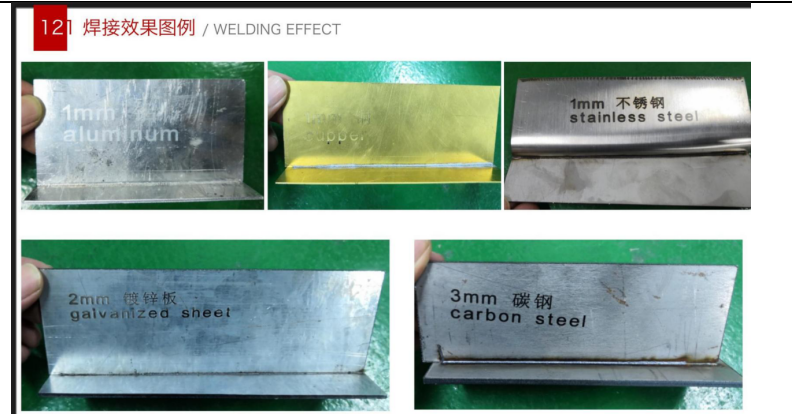

welding samples: What is a Laser Welding Machine?
Alaser welding machineis a high-precision welding equipment that uses a focused laser beam to melt and join metals. It features small heat-affected zone, low deformation, high speed, and strong weld strength. Widely used in metal fabrication, automotive, battery, electronics, jewelry, and household appliances.
Types of Laser Welding Machines

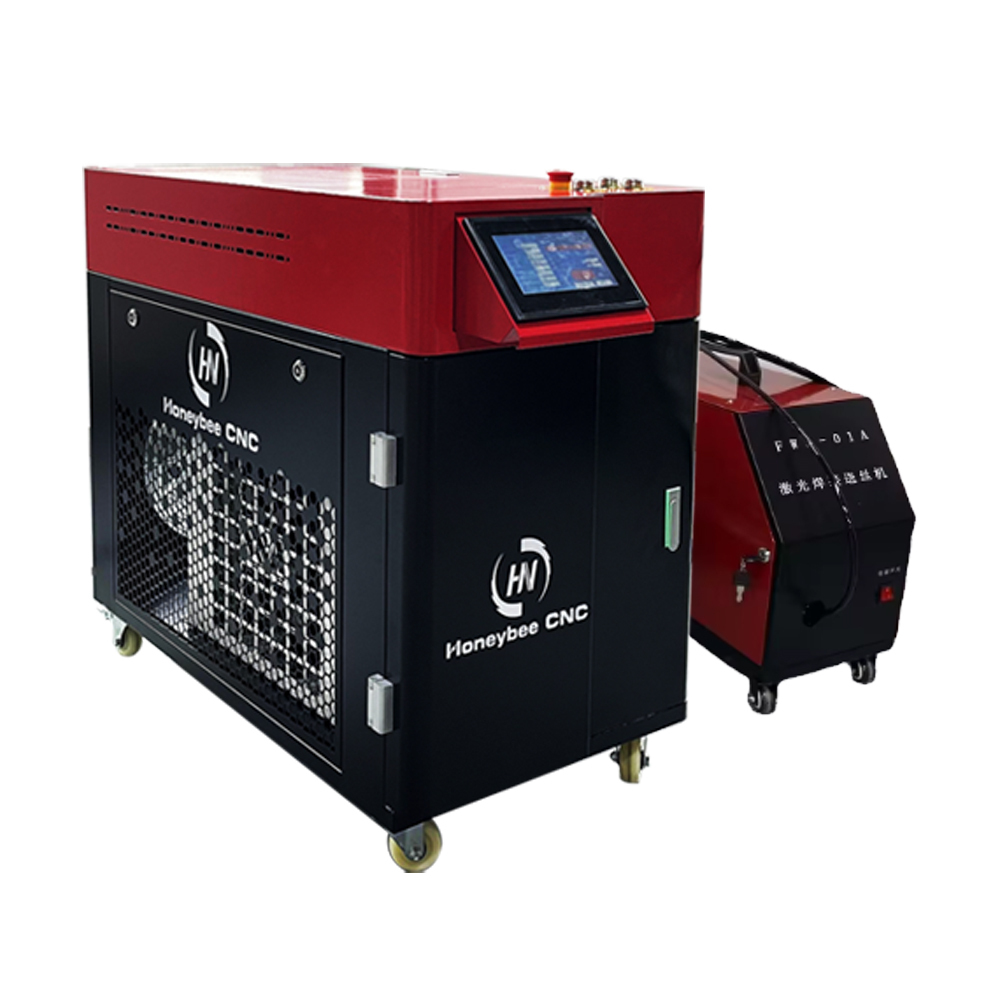

Handheld Fiber Laser Welding Machine
Portable, flexible, and easy to operate. Ideal for on-site welding, large workpieces, stainless steel, aluminum, copper, and carbon steel. Available in 1000W, 1500W, 2000W, 3000W.
Automatic CNC Laser Welding Machine
For mass production, precise positioning, and consistent welding quality. Suitable for auto parts, motors, sensors, lithium batteries, and precision components.
Key Advantages of Fiber Laser Welding Machine
High welding speed: 2–5 times faster than MIG/TIG welding
Minimal deformation and smooth welding seam
Suitable for reflective metals: aluminum, copper, brass
