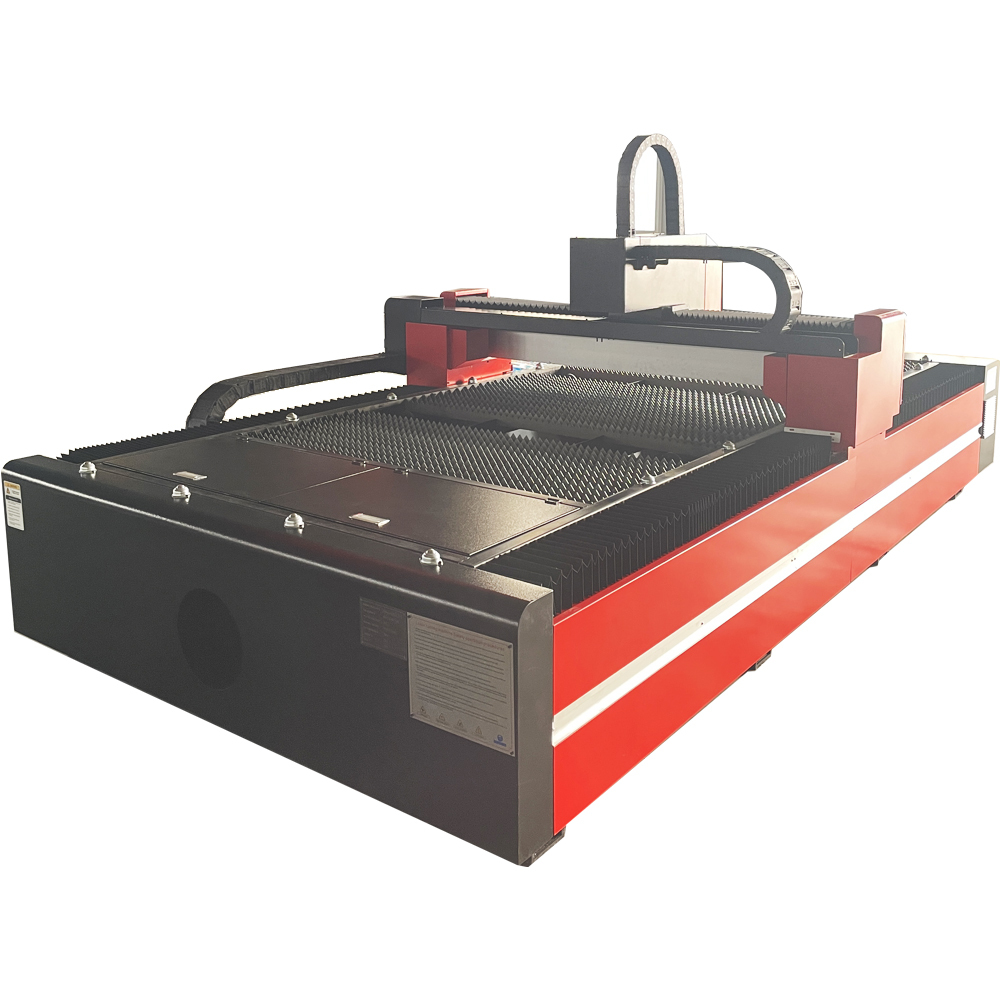

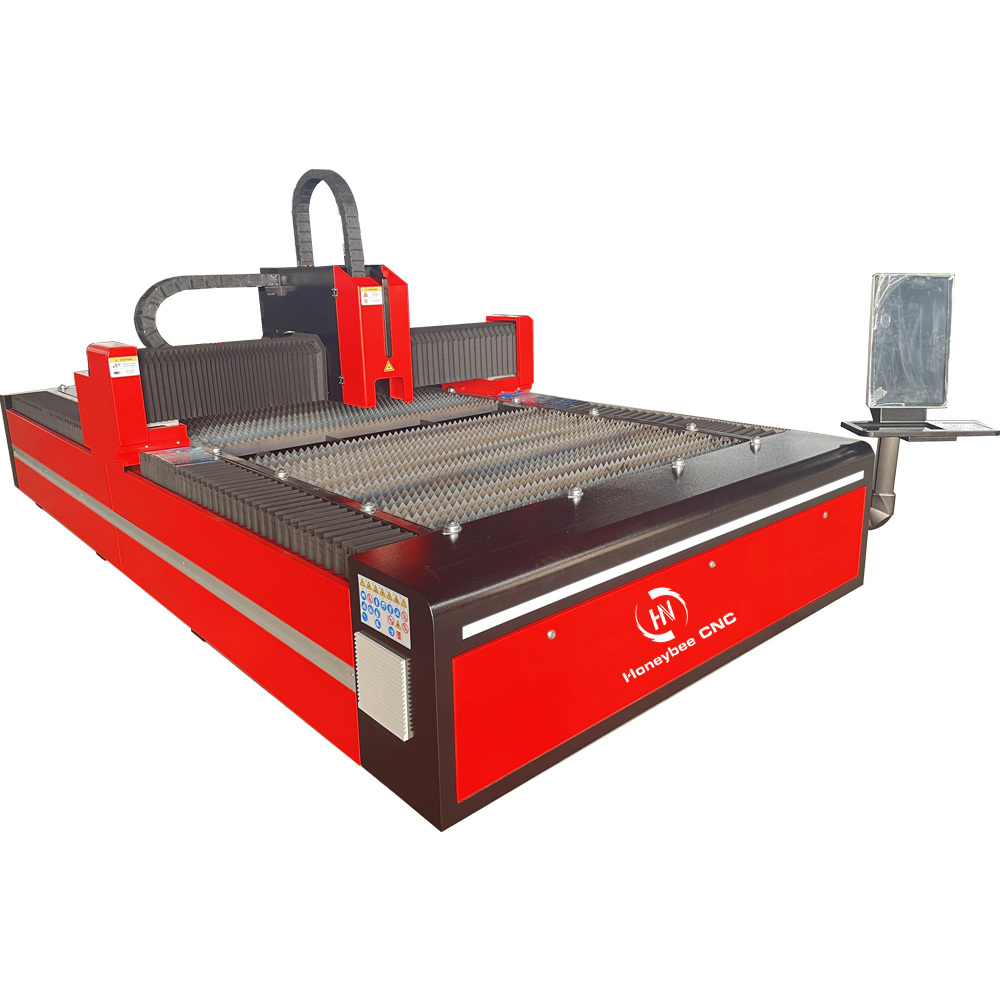

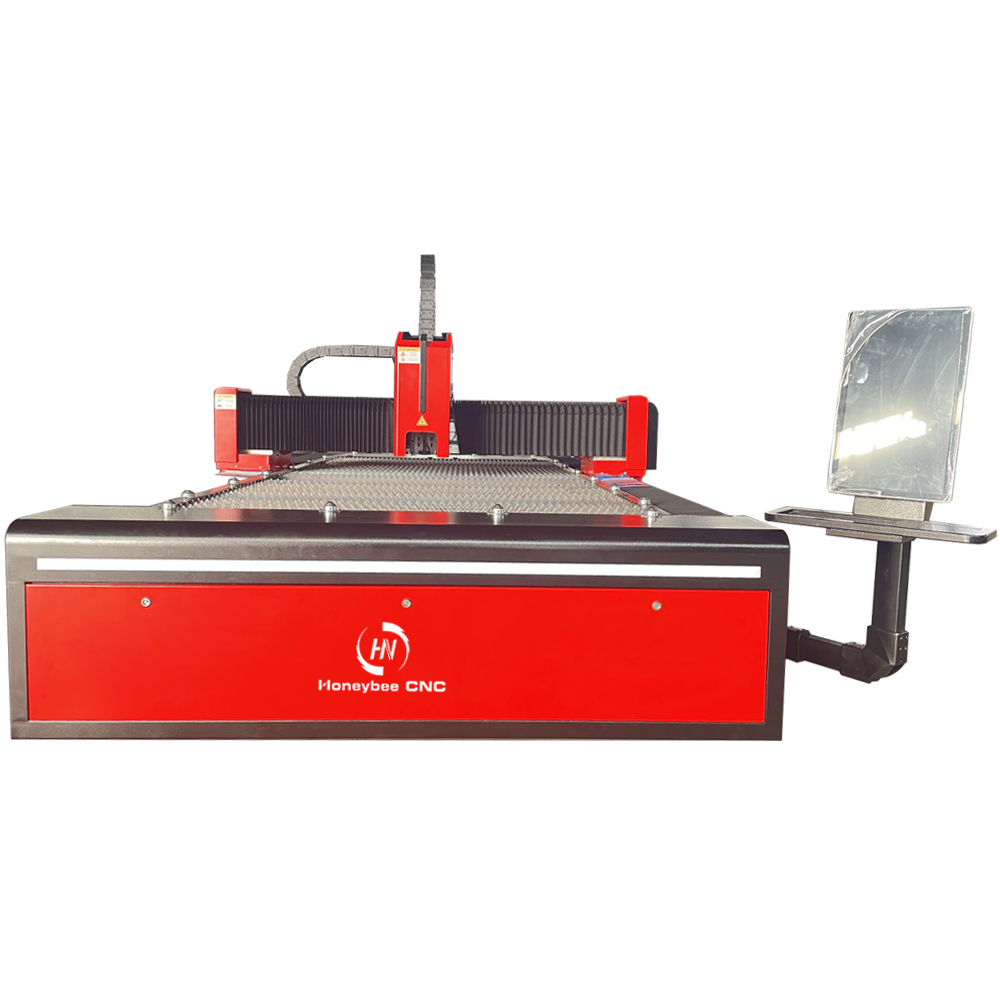

Model Specifications |
HN-H3015 |
|
Type |
Single Worktable, Full Closed |
|
Fiber laser source |
MAX 6KW Anti-reflective |
|
Effective working length X axis |
1500mm |
|
Effective working length Y axis |
3000mm |
|
Max cutting thickness |
MS ≤22mm SS≤14mm |
|
X,Y axis positioning accuracy |
±0.02mm/m |
|
X,Y Axis repositioning accuracy |
±0.02mm/m |
|
X,Y Axis moving speed |
≤90m/min |
|
Rated supply voltage and Frequency |
380V, 3Phase, 50Hz |
|
Power consumption |
41KW(exclude fume extraction device) |
|
General power protection class |
IP54 |
|
Maximum load of worktable |
800KG |
|
Gross weight |
3800KG |
|
Dimension (Length*Width*Height) |
5077*2247*2272mm |
|
MAX |
Carbon Steel |
Stainless Steel |
Aluminum |
Brass |
|
1500W |
12 |
6 |
4 |
4 |
|
2000W |
16 |
6 |
4 |
4 |
|
3000W |
18 |
8 |
4 |
4 |
|
4000W |
22 |
10 |
6 |
6 |
|
6000W |
22 |
14 |
12 |
12 |
|
12000W |
35 |
25 |
18 |
18 |
|
15000W |
35 |
25 |
20 |
20 |
|
20000W |
45 |
40 |
30 |
20 |

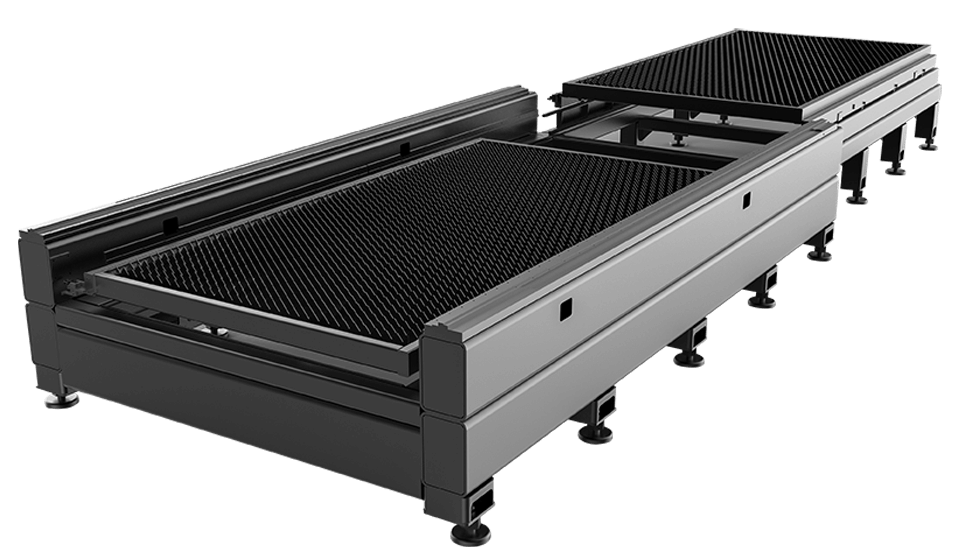

The bed body adopts the overall welded structure of steel. It is subjected to roughing after annealing to eliminate internal stress. And is finished by secondary vibration aging treatment, which better solves the stress caused by welding and processing. Thereby it greatly improved the machine tool stability.

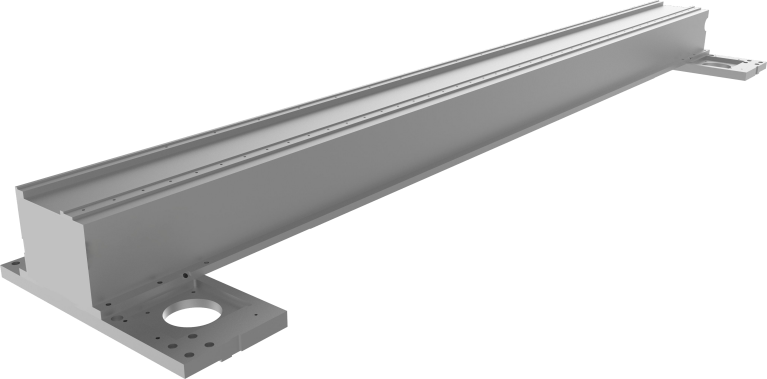

Better than cast aluminium, strong rigidity, high density, looks brighter than normal cast aluminum, stable performance and not easy deformed.
|

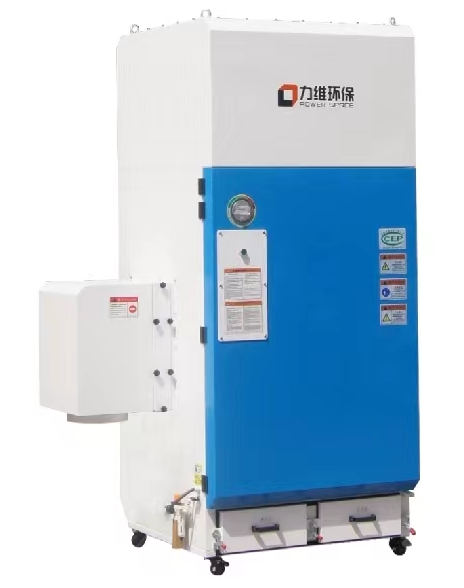

Specification |
|
|
Model |
LW - 075 |
|
Flow Volume |
5070-6500 m³/h |
|
Power |
7.5KW |
|
Filtering material |
Imported nano flame retardant filter material |
|
Filter Cartridge Qty. |
6 Pcs |
|
Filter Cartridge Filtering Area |
132㎡ |
|
Connection size |
Φ300 mm |
|
Flame trap |
Yes |
|
High efficiency metal fireproof mesh |
Yes |
|
Compressed air needed |
0.5--0.6MPa, dry and oil-free |
|
Clean mode |
Pulse automatic cleaning |
|
Dimension |
1900x1100x2200mm |
|
Weight |
860KG |
|
Power supply voltage |
380V, 3PH, 50/60HZ |
