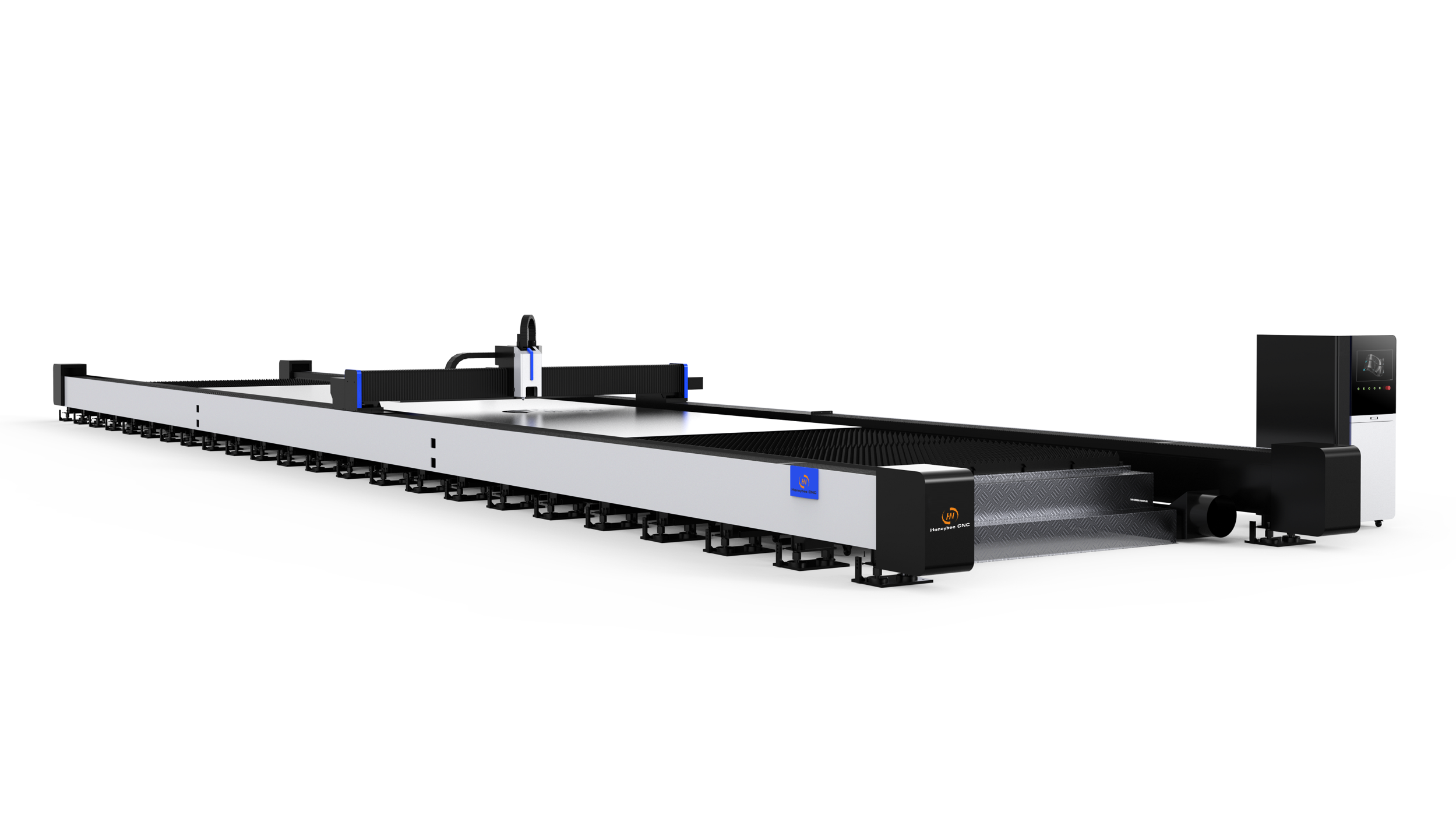

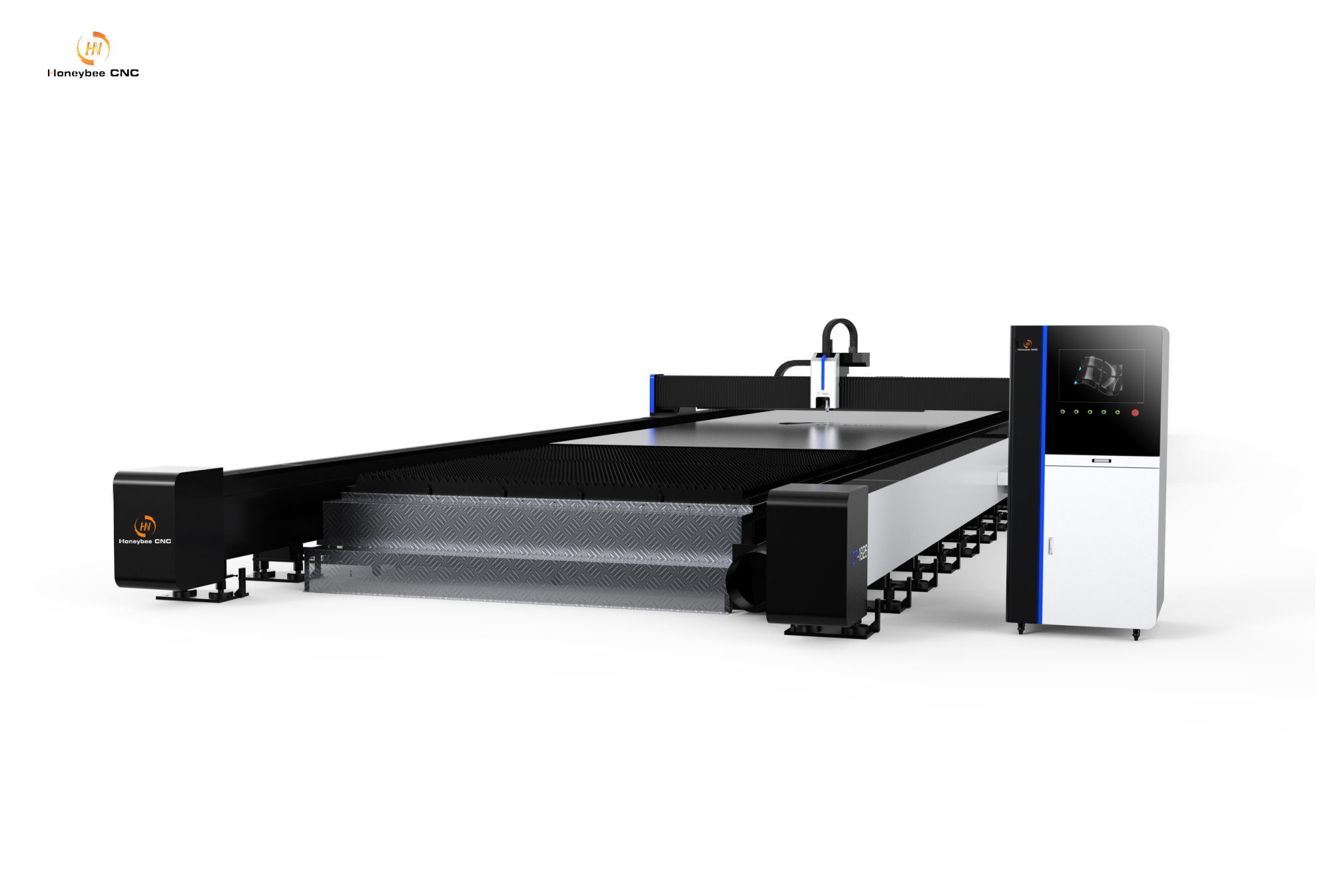

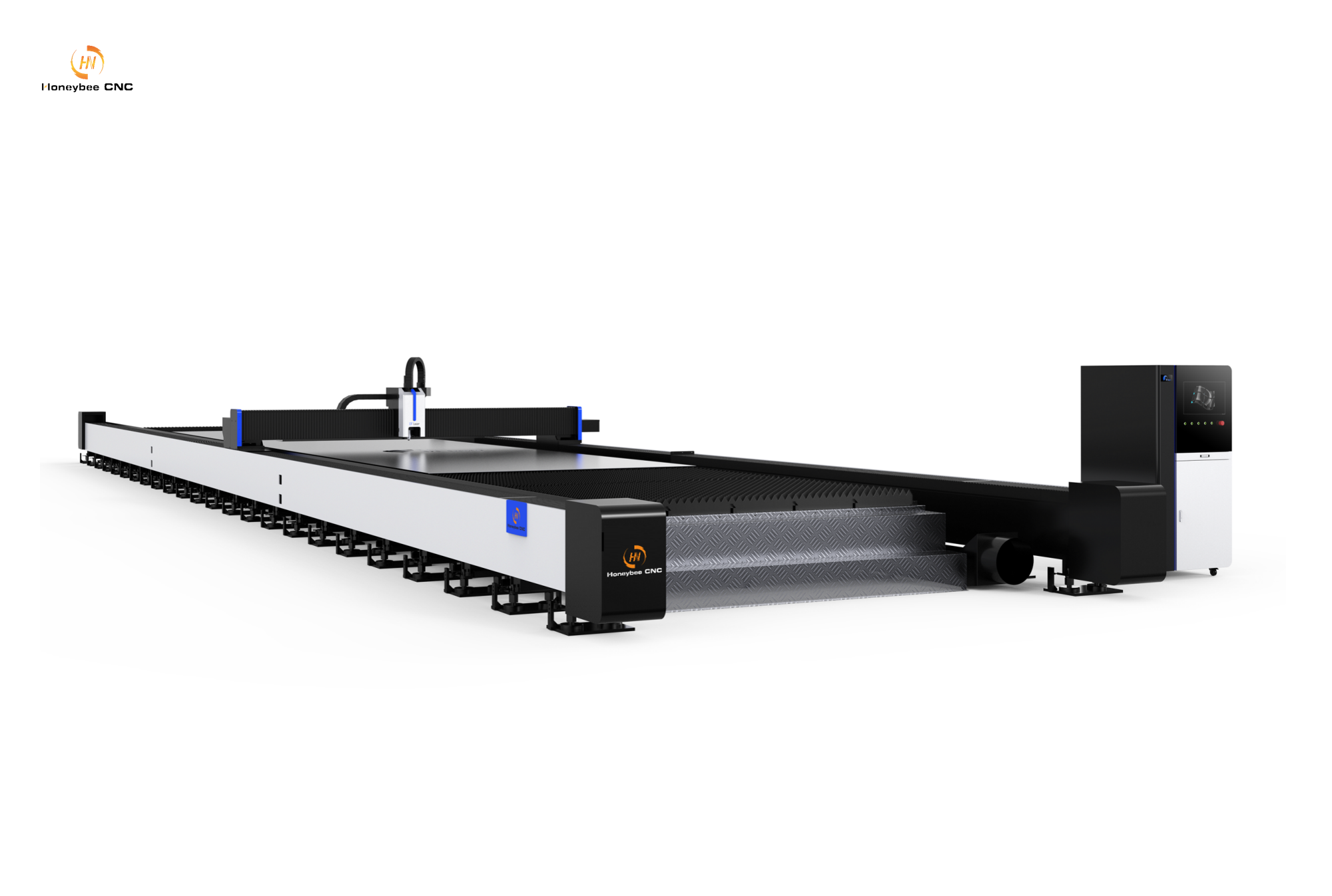

Gantry fiber laser cutting machine for large cutting area

➢ Large gantry design ensures large area diagonal precision; Automatic accuracy compensation.

➢ Super long air duct; Partition automatic dust removal; Satble and durable machine tool.

➢ Laser safety protection and safety light curtain design.

Advantages over plasma cutting

➢ High Precision, good cutting quality. Fast speed high efficiency.

➢ Small cutting taper; High material utilization.

➢ Clean and environmentally friendly; energy saving

1. General Tech Data

1. Laser Capacity and Cutting Thickness

Cut video:

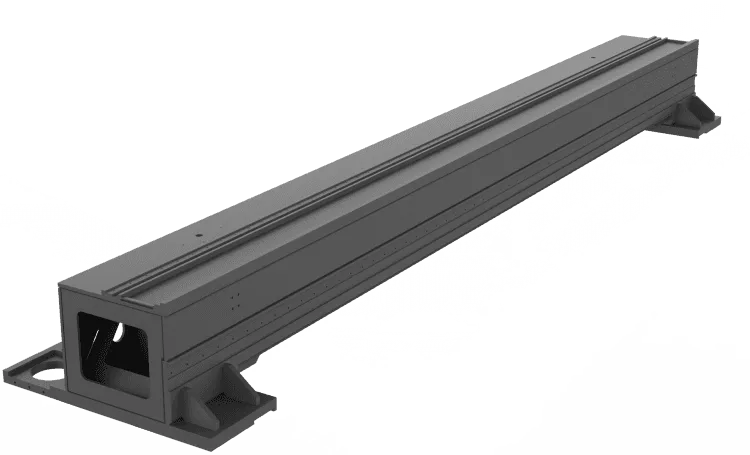

	Aluminum Beam:: Better than cast aluminium, strong rigidity, high density, looks brighter than normal cast aluminum, stable performance and not easy deformed.
Super Large Format: The dust removal system adopts a blowing and suction design. The fan on one side delivers air powerfully, and the dust collector on the other side sucks air efficiently. This two-pronged approach has excellent dust removal effects, extends the life of the equipment, creates a green and environmentally friendly working environment, and better protects the health of operators.

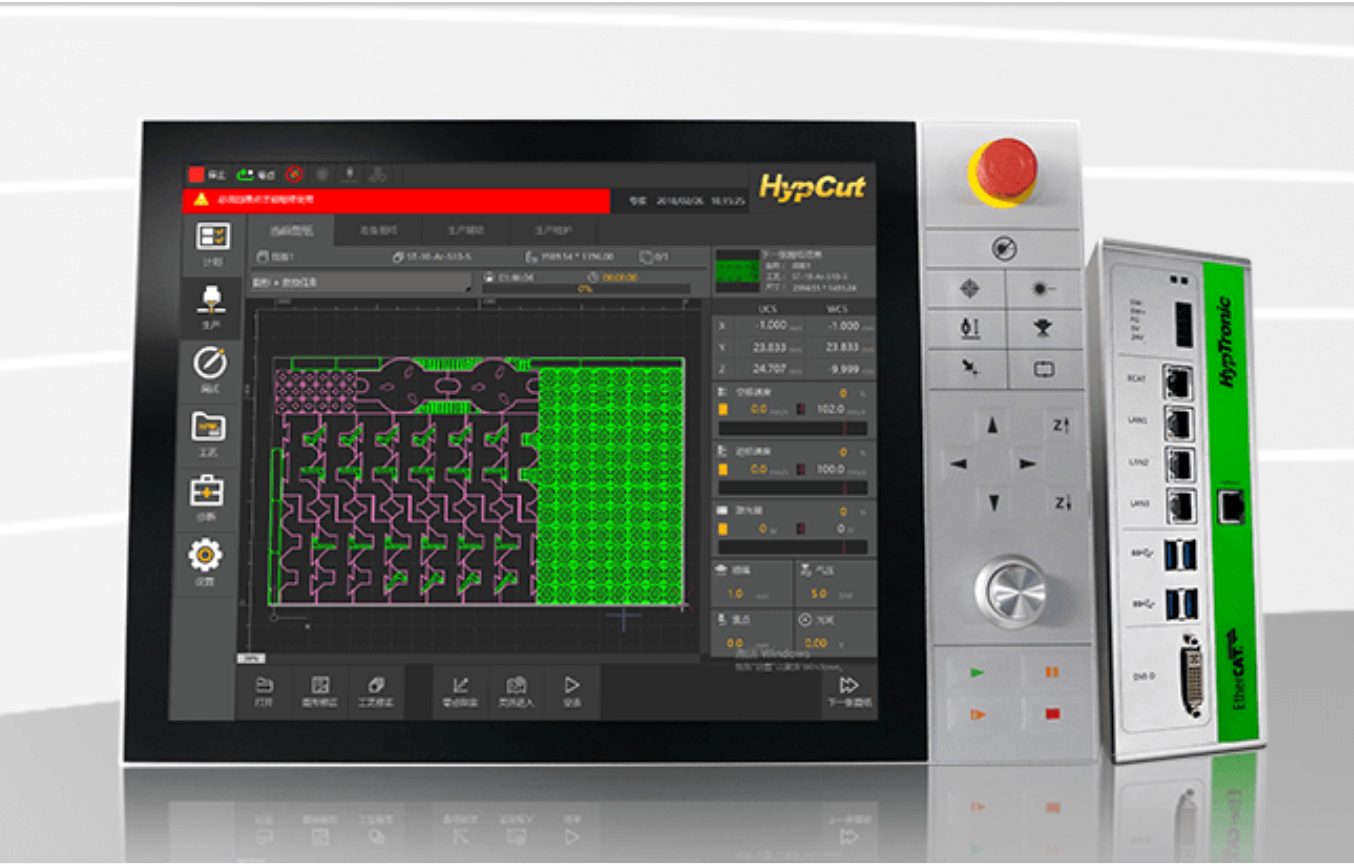

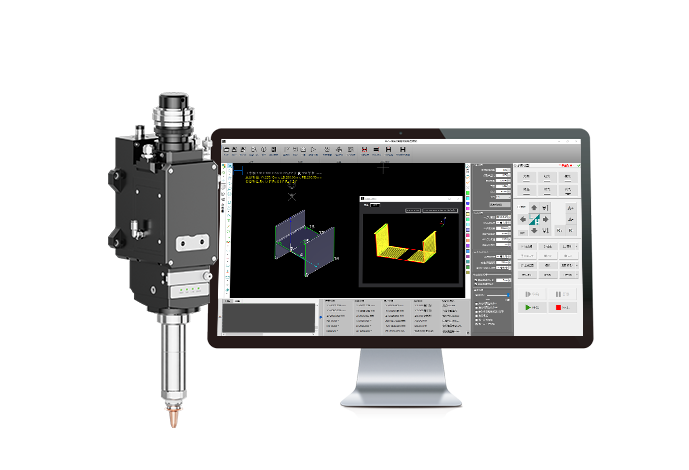

HypCut is customized software developed for high-power laser cutting. A professional process is provided for high-power laser cutting, which can realize intelligent production. It supports the planning and scheduling to assist production management; its modular design provides users with more concise and efficient operations and assists users in quickly completing production.

Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting. Bigger Adjustment Range Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates. Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

The Advantages of Fiber Laser Metal Cutting Machines

In the rapidly evolving manufacturing landscape, fiber laser metal cutting machines have emerged as a revolutionary technology, offering unparalleled precision, efficiency, and versatility. These advanced systems leverage high-powered fiber laser sources to deliver exceptional cutting performance across a wide range of metals, making them indispensable tools for industries such as automotive, aerospace, construction, and electronics. Below, we explore the key advantages of fiber laser metal cutting machines that set them apart from traditional cutting methods.

1. Superior Precision and Accuracy

Fiber laser cutters excel in producing intricate designs and tight tolerances, even on thin or delicate materials. The concentrated laser beam, with a wavelength optimized for metal absorption, ensures clean edges, minimal kerf width, and near-perfect repeatability. This precision reduces the need for secondary finishing processes, saving time and costs while maintaining high-quality output.

2. Enhanced Speed and Productivity

Compared to CO₂ lasers or plasma cutting systems, fiber laser machines operate at significantly higher speeds. Their ability to rapidly pierce and cut through metals—including stainless steel, aluminum, copper, and brass—translates to faster production cycles. Automated features, such as CNC controls and material handling systems, further boost throughput, enabling 24/7 operation with minimal downtime.

3. Energy Efficiency and Cost Savings

Fiber lasers consume up to 50% less energy than conventional CO₂ lasers, thanks to their solid-state design and efficient photoelectric conversion rates. Lower power consumption, combined with reduced maintenance requirements (no gas mirrors or complex optics), results in substantial long-term cost savings. Additionally, the minimized material waste from precise cutting optimizes raw material usage.

4. Versatility Across Materials and Thicknesses

From ultra-thin sheets (0.1 mm) to thicker plates (up to 30 mm, depending on the laser power), fiber laser cutters handle diverse metal types effortlessly. Advanced systems adapt to varying material properties by adjusting parameters like power, speed, and gas pressure, ensuring consistent quality whether cutting reflective metals or alloys.

5. Low Maintenance and Durability

Fiber laser systems are engineered for robustness, with no moving parts in the laser source and a simplified optical path. This design reduces wear and tear, extends service life, and eliminates frequent recalibration. Routine maintenance is straightforward, focusing primarily on lens cleaning and consumable replacements.

6. Eco-Friendly Operation

Fiber laser cutting produces fewer emissions and noise compared to traditional methods. The absence of harmful chemicals or gases (in many applications) aligns with sustainable manufacturing practices. Furthermore, the precision of laser cutting minimizes scrap metal generation, contributing to waste reduction.

7. Integration with Smart Manufacturing

Modern fiber laser cutters seamlessly integrate with Industry 4.0 technologies. IoT-enabled monitoring, real-time data analytics, and compatibility with CAD/CAM software streamline workflow automation. This connectivity allows for remote operation, predictive maintenance, and adaptive process optimization.

Conclusion

Fiber laser metal cutting machines represent a transformative leap in industrial cutting technology. Their combination of precision, speed, cost efficiency, and adaptability makes them a critical asset for businesses aiming to stay competitive in a demanding market. By investing in fiber laser systems, manufacturers can achieve higher productivity, reduce operational costs, and deliver superior-quality products—all while supporting sustainable practices. As the technology continues to advance, its applications and benefits will only expand, solidifying its role as the future of metal fabrication.

Machine Features:

• Our equipment is unique and adopts a sophisticated side-mounted layout. Compared with traditional designs, it greatly reduces the space occupied on the customer’s site, and the site utilization rate soars.
• The main body of the machine adopts a solid plate welding process, and the internal ribs are welded with a unique mortise and tenon structure, and then tempered, which makes it more stable than usual; with a triangular double-foot support structure, the foot is denser and formed in one piece with the bottom plate, which fundamentally ensures that the bed is as solid as a rock, has first-class anti-deformation ability, and has a higher strength. The innovative transmission and load-bearing separation design, each performs its own function, greatly increases the carrying capacity, and completely isolates the interference of heat conduction.

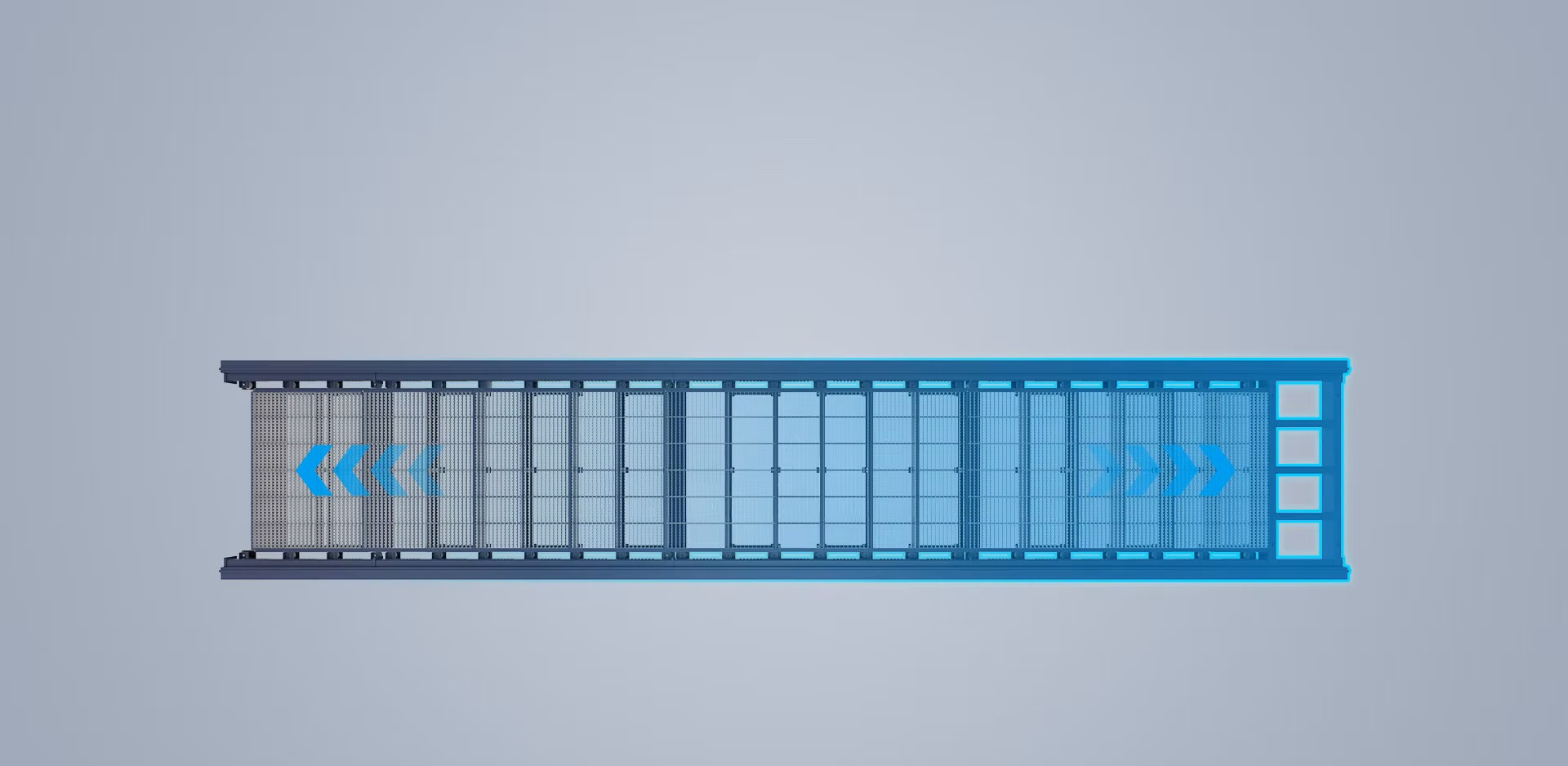

• The material table is built with an independent modular concept, which makes it easy and convenient for customers to replace and clean the slag on a daily basis. The crossbeam is made of one-piece high-strength steel beam, which has been tempered and tempered. Even with long-term high-intensity cutting operations, it can be as stable as a mountain without deformation or “bending”. Three sliders are precisely arranged on both sides of the crossbeam base to ensure long-term stable and efficient operation of the equipment. The wear of each slider is reduced, and the service life is significantly extended.
• The highly sensitive safety gratings in front and behind the beam are like loyal guards, fully protecting the safety of operators when the equipment is moving. The Z axis is equipped with a rack and pinion structure, which integrates precision, rigidity, speed and stability. The upper and lower dust covers are airtight, and dust has no chance to enter.
• Flexible customization of formats to meet diverse needs; the groove system (9100) has rich optional solutions, secondary groove expands cutting possibilities, and parts can be placed freely after straight cutting and common edge cutting. The positioning camera and contour scanner work together to accurately lock the position and height of parts, automatically compensate for deviations and thermal deformation, greatly increase the utilization rate of plates, and upgrade the cutting speed, cross-section effect, and precision in all aspects. The root size of X and Y grooves is accurate to the millimeter.
• The straight cutting mode can be equipped with a dual-spot cutting head, which can cut thin plates at lightning speed and thick plates with excellent quality, and the power performance is released to the extreme. Both straight cutting and beveling can be equipped with the Sky Eye system, which can turn scraps into treasures. The scanner can accurately outline and locate, and manual or automatic layout can be switched at will. One-click processing can reduce the cost of plates and significantly increase processing profits.
